Load monitor

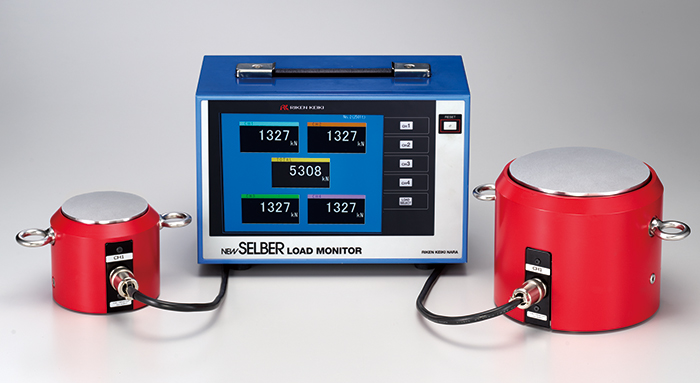

NEW SELBER Load monitorRM-7414

<span>NEW SELBER Load monitor</span>RM-7414

Characteristics

  • ● Ideal for measuring load capacity. Up to 1000t can be measured for capacity.
    ・4 load cells RS-711H (100t) can measure up to 400t.
    ・4 load cells RS-712H (250t) can measure up to 1000t.
  • * The main unit display of the load monitor is kN (kilo newton). 5 patterns of load cell settings can be registered.

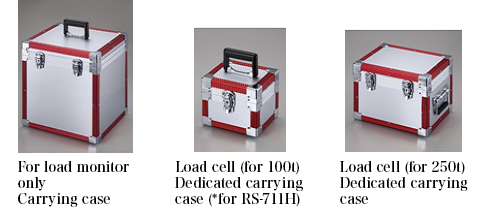

Accessories

Specifications

NameNEW SELBER Load monitor
ModelRM-7414
Compatible load cellRS-711H／RS-711H2／RS-712H
Number of load cell channels4ch
Operating Temperature Limit0~50°C (operating range), 10~40°C (guaranteed range), (no condensation)
Ambient atmosphere when usedFree from corrosive gas and dust
Power supplyAC100〜240V　50/60Hz
External Dimensions260 (W) x 170 (H) x 136 (D) mm (excluding terminal block and other protrusions)
DisplayColor TFT LCD (7.5-inch) Number of dots Horizontal 640 x Vertical 480
Backlight life 50,000 hours (Typ.)
Built-in batteryLithium battery CR2032 1 life (reference) 5 years (25°C)
Name NEW SELBER load cell (100t・250t)
Model RS-711H RS-711H2（※） RS-712H
Rated load 200～1000kN 200～1000kN(per piece) 500～2500kN
External Dimensions (D×H(mm))
(Excluding protrusions) 		φ102×88 φ102×88(per piece) φ157×130
Weight Approx. 3.6kg Approx. 7.2kg (2 pieces total) Approx. 13.9kg
Operating Temperature Limit 10～40℃(No Condensation) 10～40℃(No Condensation) 10～40℃(No Condensation)

* The RS-711H2 main unit is a set of two RS-711H main units.

Name Dedicated carrying case for load cell
Model RS-711H RS-711H2（※） RS-712H
External Dimensions (W×H×D (mm))
(Excluding protrusions) 		197×155×167 317×155×197 317×222×237
Weight Approx. 1.9kg Approx. 3.2kg Approx. 4.0kg
Name Dedicated relay cable for load cell
Model RS-715C（5m）

*The specifications and the contents described in this instruction manual are subject to change without prior notice.
