- External Dimensions PDF
- If you use CAD data, we will accept it by email.
Characteristics
- ●Low price.
- ●Since the sensors are compatible, there is no need to replace them.
- ●Timing sensor is not required due to internal synchronization.
- ●Digital, easy to operate. (The result would be the same indifferent to the operator.)
Specifications

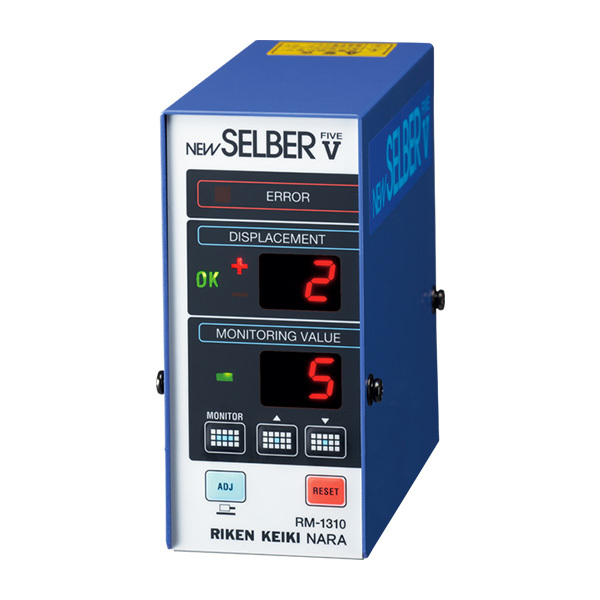

| Name | NEW SELBER V |
| Model | RM-1310 |
| Detection resolution | 1μm |
| Monitoring method | Previous value comparison |
| Input | 2 points, non-voltage NPN open collector output or contact input |
| Output | Relay contact (C contact) NC-C-NO AC250V 2A Max. (Resistive load) |
| Maximum number of rotations that can be monitored | 3000spm |
| Operating Temperature Limit | 0-50℃ (No Condensation) |
| Ambient atmosphere when used | Free from corrosive gas and dust |
| Power supply | AC100V-230V 50/60Hz |
| Weight | Main Unit: Approx. 0.6kg Mounting angle: Approx. 0.3kg |
| External Dimensions | 50 (W) x 110 (H) x 120 (D) mm (excluding terminal block and other protrusions) |
*The specifications and the contents described in this instruction manual are subject to change without prior notice.
